Surface-Activated for Stronger Insulation

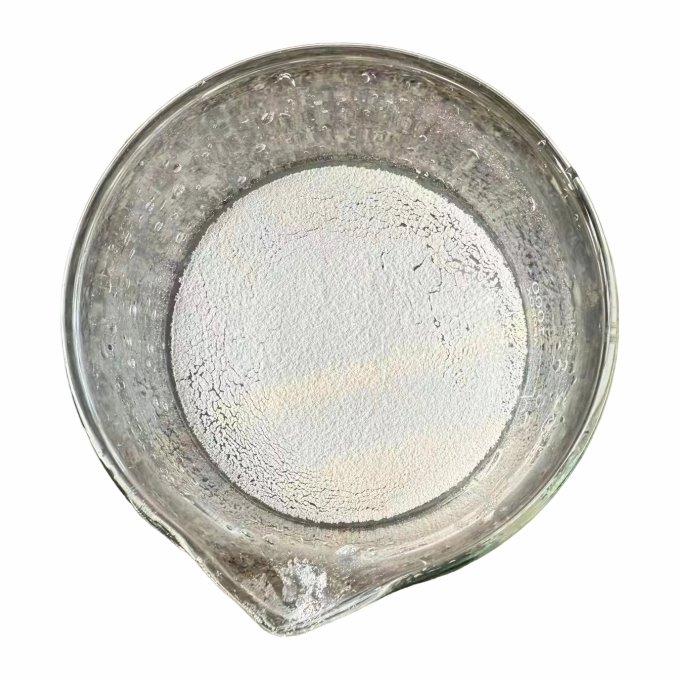

Electrical Grade Treated Silica Powder is a deep-processed version of our electrical-grade product. It starts with the excellent electrical insulation properties of Electrical Grade Silica Powder. Then we add a special surface activation treatment. This gives the powder better surface chemistry. It bonds much more strongly with epoxy and polyester insulation materials. This upgrade gives three direct benefits. The mechanical strength of the casting material increases. The crack resistance improves. The dimensional stability under thermal cycling becomes much better.
Proven in High-Voltage Equipment Manufacturing
In high-voltage equipment manufacturing, our Electrical Grade Treated Silica Powder has been proven as an effective way to improve product quality. The activated powder bonds more strongly with the resin matrix. This effectively suppresses micro-cracks in insulation parts during thermal shock. At the same time, the overall electrical strength of the insulation material improves by about 5%-10%. Our technical lead, Zheng Tianji, and his team have rich experience in surface treatment. They can adjust the activation formula and process parameters for your specific resin and curing system. This ensures our product gives you the best modification results.
Key Specifications for Your Evaluation
|
Parameter |
Typical Value / Range |
Test Standard |
|
Main Content (SiO₂) |
≥ 99.3% |
Chemical Analysis |
|
Surface Treatment |
Special Coupling Agent |
Infrared Spectroscopy |
|
Activation Degree |
≥ 93% |
Activation Test Method |
|
Volume Resistivity |
≥ 1×10¹⁴ Ω·cm |
High Resistance Meter |
|
Dielectric Constant (1MHz) |
≤ 4.5 |
Dielectric Loss Tester |
|
Particle Size (D50) |
5μm - 25μm (Customizable) |
Laser Diffraction |
|
Conductivity (Water Suspension) |
≤ 18 μS/cm |
Conductivity Meter |
|
Moisture Content |
≤ 0.12% |
Oven Drying Method |
Specialized Applications and Custom Options
Electrical Grade Treated Silica Powder is used in power equipment where both insulation and mechanical strength are critical. In UHV GIS and transformer epoxy casting insulation, its improved crack resistance ensures safe operation in extreme climates. In dry-type transformers and reactors, it strengthens the coil insulation structure and vibration resistance. In outdoor insulators and bushings, the improved interface reduces tracking under wet and polluted conditions. We can customize the coupling agent type, activation level, and particle size for your specific resin and curing conditions. The minimum order is 1 ton.
